Quran.Foundation’s OAuth2 Example Web Integration

Setup

• Start with cloning our Oauth2 example repo.

• Copy .env.example file into .env:

  cp env.example .env

• Paste the following into .env:

  BASE_PATH = 'http://localhost:3000'
  PORT = 3000
  TOKEN_HOST = 'https://oauth2.quran.foundation'
  CLIENT_ID = 'quran-demo'
  CLIENT_SECRET = 'secret'
  SCOPES = 'openid offline collection bookmark reading_session preference user'
  • Please note that the values of client id and client secret are set to (quran-demo and secret) which are meant for testing purposes and are not meant for production use.
  • For production use, please make sure to obtain your own client id and secret use by submitting your OAuth2 Application.

• Install dependencies:

  npm install

• Start the Oauth2 example app:

  npm start

Quick Start

• Go to http://localhost:3000.
• Click “Continue with Quran.Foundation”.
• If you are not logged in already, you will be asked to login, make sure you do.
• You might be asked to consent to the example app accessing your data, make sure you consent to all of them.
• Once logging in and consenting steps are done, You will be redirected to http://localhost:3000/callback.
  • a JSON response that has the following structure will be shown:
    • access_token
    • expires_in
    • id_token
    • refresh_token
    • scope
    • token_type
    • expires_at
  • access_token will be used to access your resources stored on Quran.Foundation’s resources server.
  • refresh_token will be used to re-generate a new access_token when it expires. Make sure to save it in a long term storage.
  • scope object the scopes that have already been granted to the example app to access.

Accessing resources from Quran.Foundation’s Resources Server

• You can explore the list of all available APIs here.

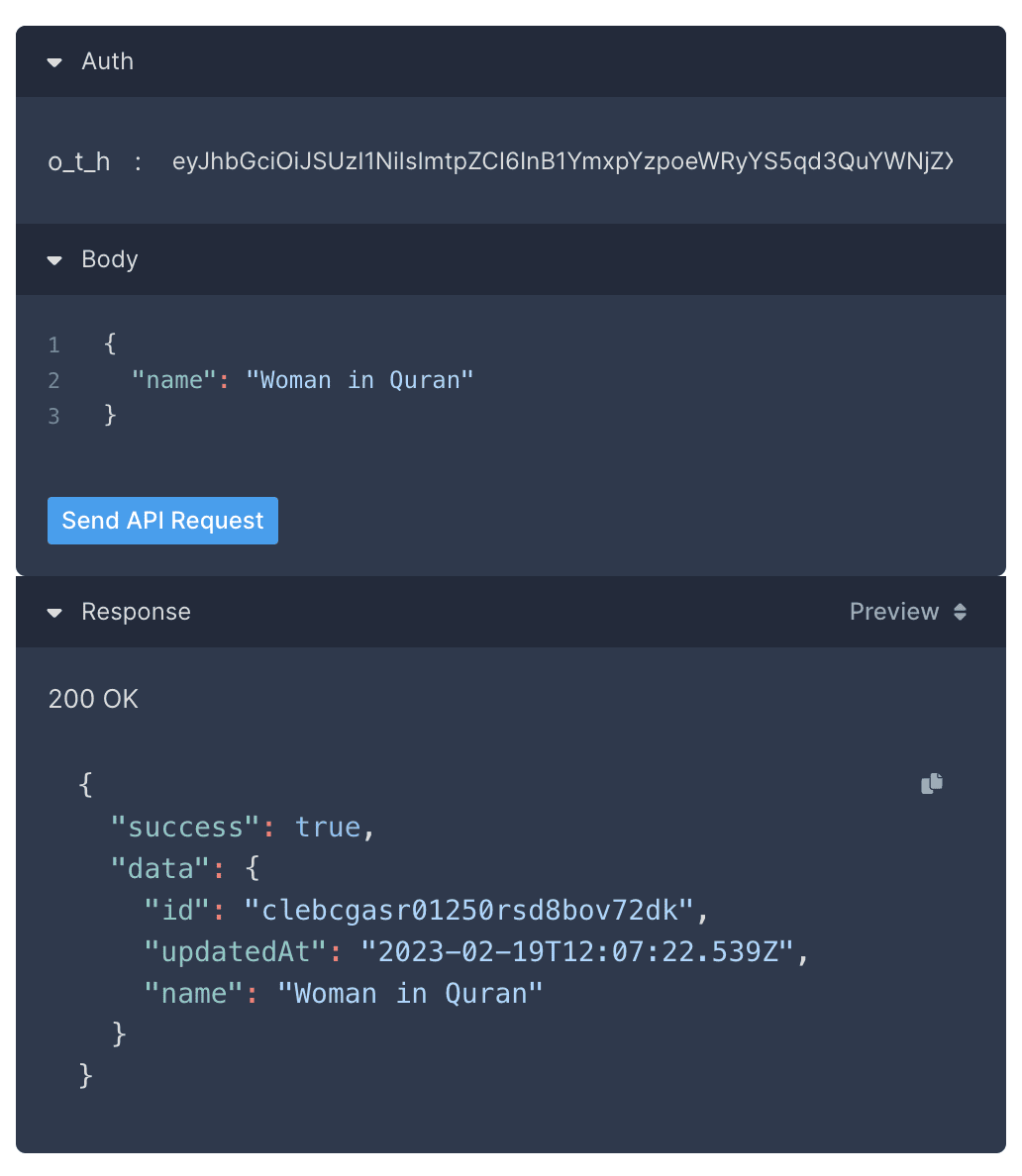

• For example, to add a collection to your profile, you can use our interactive collection API
  • Put the access_token value in x-auth-token header.
  • And add the name of the collection’s inside name JSON parameter.
  • Click Send API Request button.

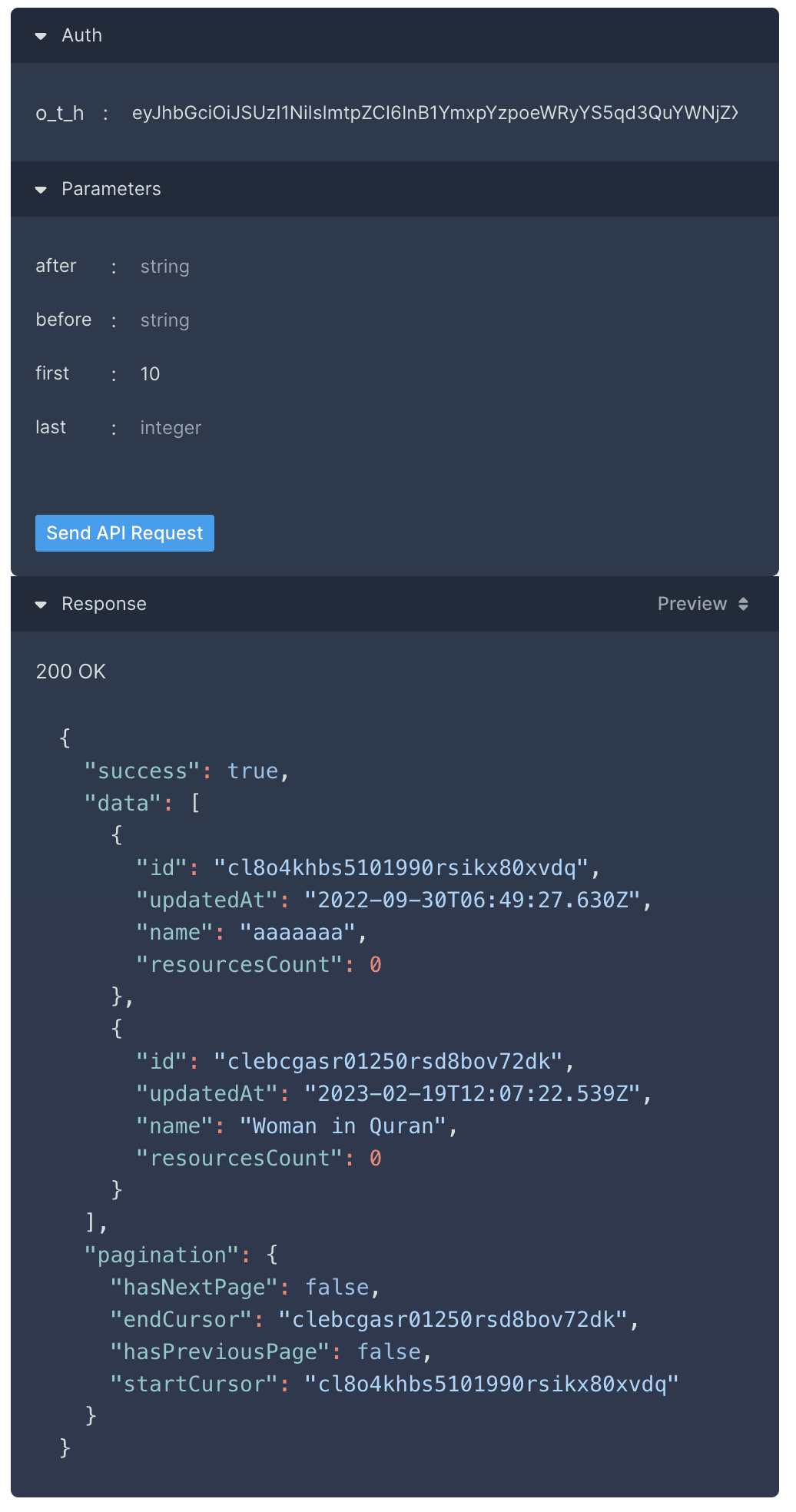

• Now, to make sure it was added, you can make a call to get all collections API:
  • Put the access_token value in x-auth-token header.
  • Set the value of first parameter to 10 for example.
  • Click Send API Request button.

How the quran-oauth2-example repo works

Dependencies

Dependancy	Description
Express	A minimal nodejs’s web framework
simple-oauth2	NodeJS OAuth2 client library
Pug	Templating engine for Express.js

Endpoints

If you open index.js, you will see that we have 3 endpoints

Endpoint	Description
/	Renders the view of http://localhost:3000
/auth	Initiates the Oauth2 process
/callback	Receives the callback from Quran.Foundation’s authorization server

Index.js

First part contains importing the required dependencies and setting up reading environment variables from .env file.

const { AuthorizationCode } = require('simple-oauth2')
const path = require('path')
const app = require('express')()
const dotenv = require('dotenv')
dotenv.config()

Next, we are setting up the view engine to use pug and setting which port and path the Oauth2 example app will run on.

const PORT = process.env.PORT
const BASE_PATH = process.env.BASE_PATH

app.set('views', path.join(__dirname, 'views'))
app.set('view engine', 'pug')

createApplication will be called later to actually kick start the express app at the PORT we set in .env file.

const createApplication = (cb) => {
  const callbackUrl = BASE_PATH + '/callback'
  app.listen(PORT, (err) => {
    if (err) return console.error(err)
    console.log(`Express server listening at ${BASE_PATH}`)
    return cb({
      app,
      callbackUrl,
    })
  })
  ...
}

Next, we start setting up an Oauth2 client using CLIENT_ID, CLIENT_SECRET and TOKEN_HOST values set in .env file.

const client = new AuthorizationCode({
  client: {
    id: process.env.CLIENT_ID,
    secret: process.env.CLIENT_SECRET,
  },
  auth: {
    tokenHost: process.env.TOKEN_HOST,
    tokenPath: '/oauth2/token',
    authorizePath: '/oauth2/auth',
  },
})

Defining authoriationUri

// Authorization uri definition
const authorizationUri = client.authorizeURL({
  redirect_uri: callbackUrl,
  scope: process.env.SCOPES,
  state: 'veimvfgqexjicockrwsgcb333o3a',
})

• redirect_uri is where Quran.Foundation's authorization server will redirect the user back to once a user successfully authorizes the example app and it should be set to our example app's url [http://localhost:3000](http://localhost:3000).
• scope value will come from .env file. You can read more about all the available scopes here.
• state is an optional randomly generated value whose purpose is to prevent CSRF (Cross-Site Request Forgery) attacks. The client app that initiates the OAuth2 flow sends it to the authorization server. The authorization server returns this state parameter to the client as part of the redirect URI. The client should validate it upon receiving it.

Defining / endpoint.

• This endpoint, when accessed will render the view in views/index.pug

app.get('/', (req, res) => {
  res.render('index')
})

Defining /auth endpoint.

• The endpoint that will initiate the entire Oauth2 flow when accessed (via http://localhost:3000/auth)

app.get('/auth', (req, res) => {
  console.log(authorizationUri)
  res.redirect(authorizationUri)
})

Defining /callback endpoint.

• Once a user successfully authorizes the example app, Quran.Foundation’s authorization server will redirect the user back to http://localhost:3000/callback with code ,state and scope query params.
• We’re going to exchange the code with an access token by calling the tokenPath endpoint defined above.

app.get('/callback', async (req, res) => {
  const { code } = req.query
  const options = {
    code,
    redirect_uri: callbackUrl,
  }

  try {
    const data = await client.getToken(options)
    console.log(data)

    console.log('The resulting token: ', data.token)

    return res.status(200).json(data.token)
  } catch (error) {
    console.error('Access Token Error', error)
    return res.status(500).json('Authentication failed')
  }
})

Putting all of the above configuration together, createApplication function looks like:

createApplication(({ app, callbackUrl }) => {
  const client = new AuthorizationCode({
    client: {
      id: process.env.CLIENT_ID,
      secret: process.env.CLIENT_SECRET,
    },
    auth: {
      tokenHost: process.env.TOKEN_HOST,
      tokenPath: '/oauth2/token',
      authorizePath: '/oauth2/auth',
    },
  })

  // Authorization uri definition
  const authorizationUri = client.authorizeURL({
    redirect_uri: callbackUrl,
    scope: process.env.SCOPES,
    state: 'veimvfgqexjicockrwsgcb333o3a',
  })

  // Initial page redirecting to Github
  app.get('/auth', (req, res) => {
    console.log(authorizationUri)
    res.redirect(authorizationUri)
  })

  // Callback service parsing the authorization token and asking for the access token
  app.get('/callback', async (req, res) => {
    const { code } = req.query
    const options = {
      code,
      redirect_uri: callbackUrl,
    }

    try {
      const data = await client.getToken(options)
      console.log(data)

      console.log('The resulting token: ', data.token)

      return res.status(200).json(data.token)
    } catch (error) {
      console.error('Access Token Error', error)
      return res.status(500).json('Authentication failed')
    }
  })

  app.get('/', (req, res) => {
    res.render('index')
  })
})
